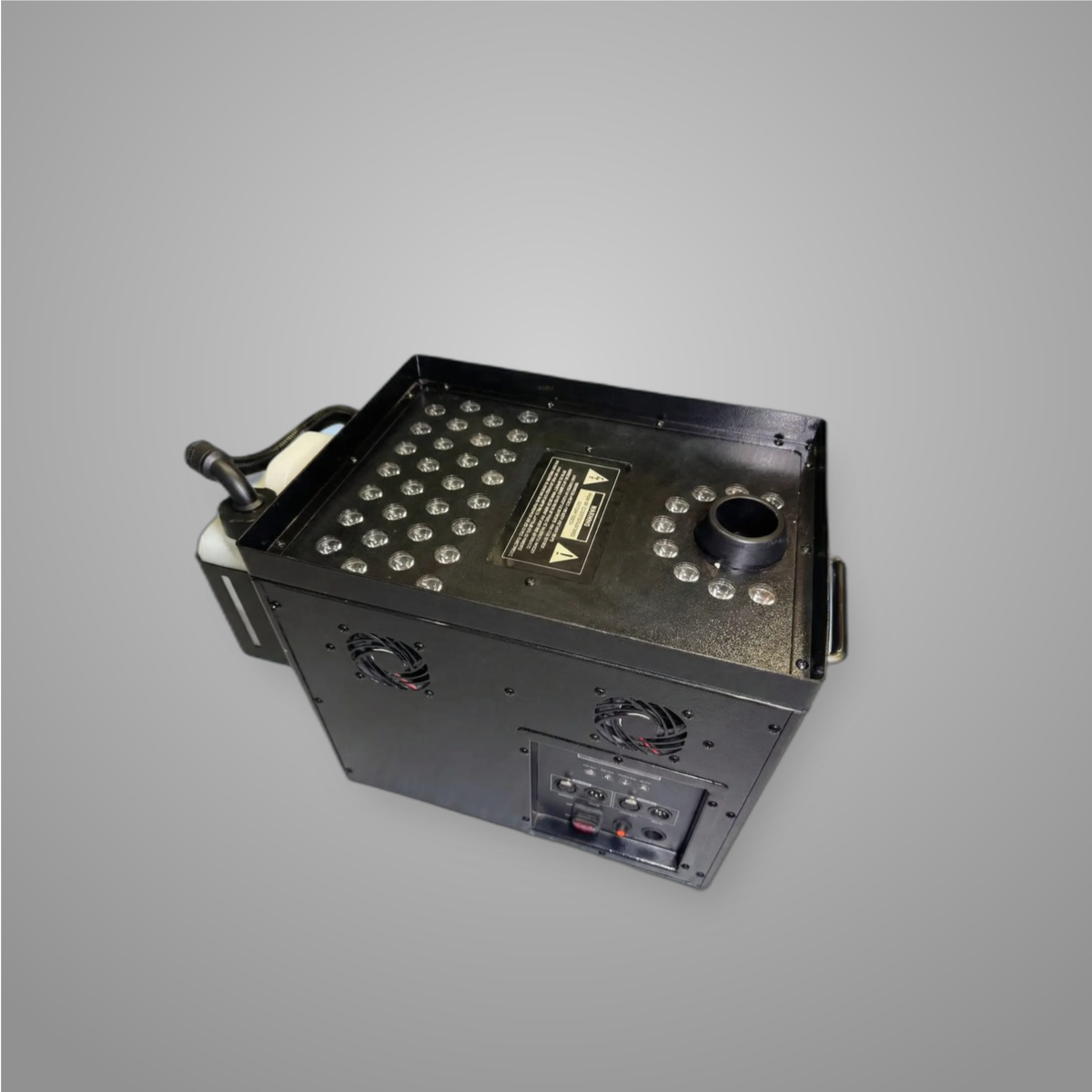

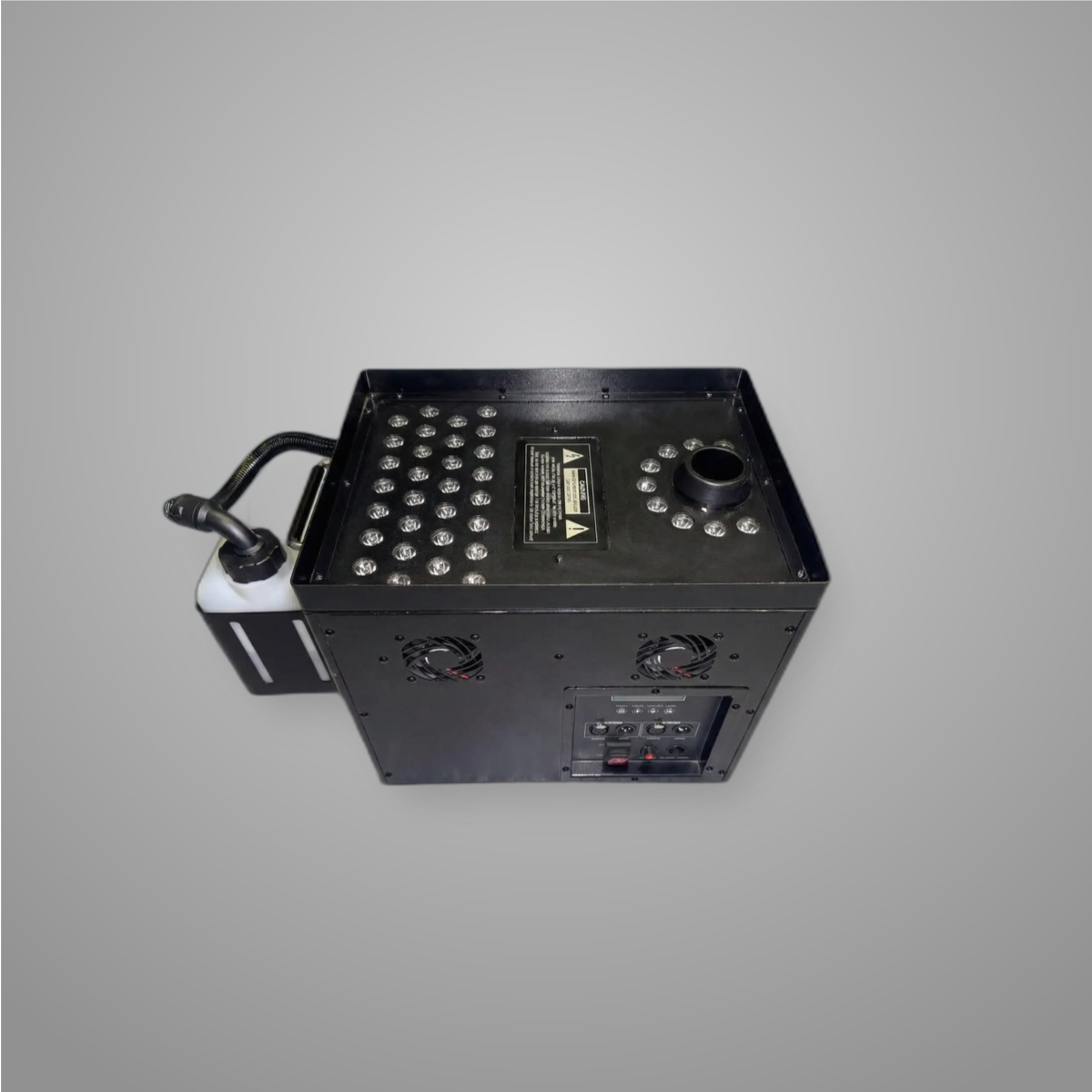

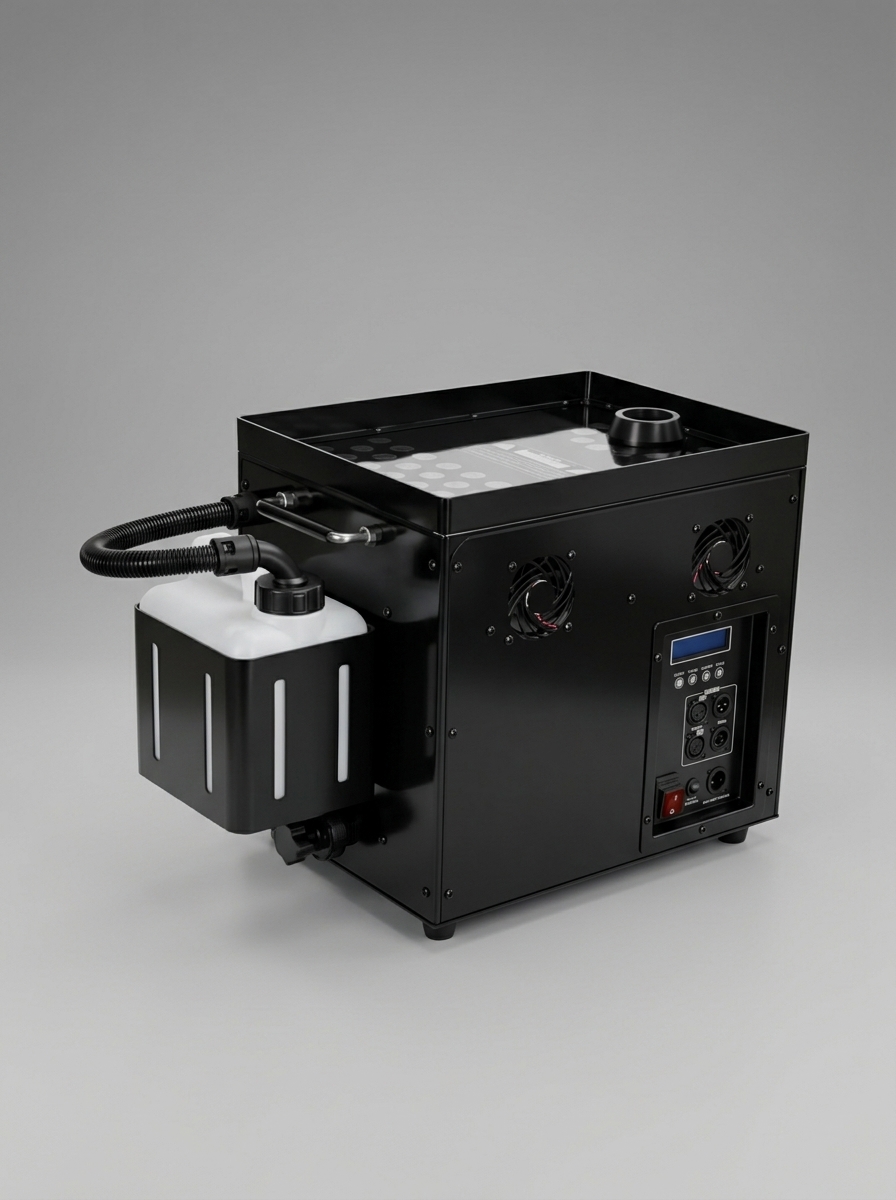

Cryoblast FX-FOG20X: The Ultimate CO2-Free Vertical Fog Machine
Unleash explosive, vibrant columns of fog and light with the Cryoblast FX-FOG20X. This powerhouse vertical fogger is the ultimate, cost-effective, and safe alternative to traditional CO2 jets, designed for professional stage productions, concerts, and large-scale events.
Transform your show with breathtaking plumes of smoke reaching over 12 meters high, instantly illuminated by a stunning, dual-zone RGB LED system. The FX-FOG20X delivers unparalleled visual impact, giving you the power to create unforgettable moments.
Key Features:
•Massive Output: A formidable 3200W heater and high-pressure compressor launch dense fog columns to heights exceeding 12 meters (40+ ft), creating a spectacular atmospheric effect.
•Dynamic Dual-Zone LEDs: Features two independently controllable RGB LED rings with a total power of 315W. Create stunning two-tone color effects, gradients, and dynamic chases that are impossible with single-color systems.
•Ultimate Versatility: Mount it on the floor for powerful upward blasts or rig it upside down for dramatic downward cascades of fog. The robust design is fully truss-mountable for complete creative freedom.
•CO2-Free & Cost-Effective: Delivers the iconic CO2 jet look without the logistical challenges, safety concerns, and high costs of cryogenic gas cylinders. Uses safe, water-based quick-dissipating fog fluid.
•Full DMX Control: Integrate seamlessly into any professional lighting setup with 5 and 11-channel DMX modes, giving you precise control over fog output, color, strobing, and dimming.
•Power-Efficient ECO Mode: Switch to the 1600W ECO mode when full power isn’t needed, reducing energy consumption without sacrificing performance for smaller venues.
Unleash the Power
The Cryoblast FX-FOG20X is engineered for impact. Its rapid 7-minute heat-up time and high-pressure system ensure that powerful bursts of fog are ready exactly when you need them. The advanced dual-ring LED system, with 39 high-power 8W RGB LEDs, provides brilliant and even color saturation throughout the entire fog column, making your effects visible from every corner of the venue.
Built for the Road
Designed for the rigors of touring and professional use, the FX-FOG20X features a rugged metal chassis, reliable PowerCON TRUE1 connections, and both 3-pin and 5-pin DMX I/O for maximum compatibility. An integrated fluid sensor protects the pump from running dry, ensuring a long and reliable service life.
Technical Specifications
|
Feature
|
Specification
|
|
Heater Power
|
3200W (Full Power) / 1600W (ECO Mode)
|
|
Max Power Consumption
|
4500W
|
|
Voltage
|
220-240V, 50/60 Hz
|
|
Warm-up Time
|
Approx. 7 minutes
|
|
Max Output Height
|
15 meters
|
|
Fluid Tank Capacity
|
3 Liters
|
|
Fluid Consumption
|
7.5 ml/sec
|
|
LED System
|
39 x 8W RGB LEDs (315W Total) – Dual Ring
|
|
DMX Channels
|
5 / 11
|
|
Control
|
DMX512, Onboard Manual Control
|
|
Connections
|
PowerCON TRUE1 IN, 3-pin & 5-pin DMX I/O
|
|
Dimensions
|
490 x 340 x 260 mm
|
|
Weight
|
24 kg
|
What’s in the Box?
•1 x Cryoblast FX-FOG20X Fog Machine
•1 x PowerCON TRUE1 Power Cable
•1 x User Manual
Elevate your production to the next level. Order the Cryoblast FX-FOG20X today and create effects that will leave your audience breathless!
