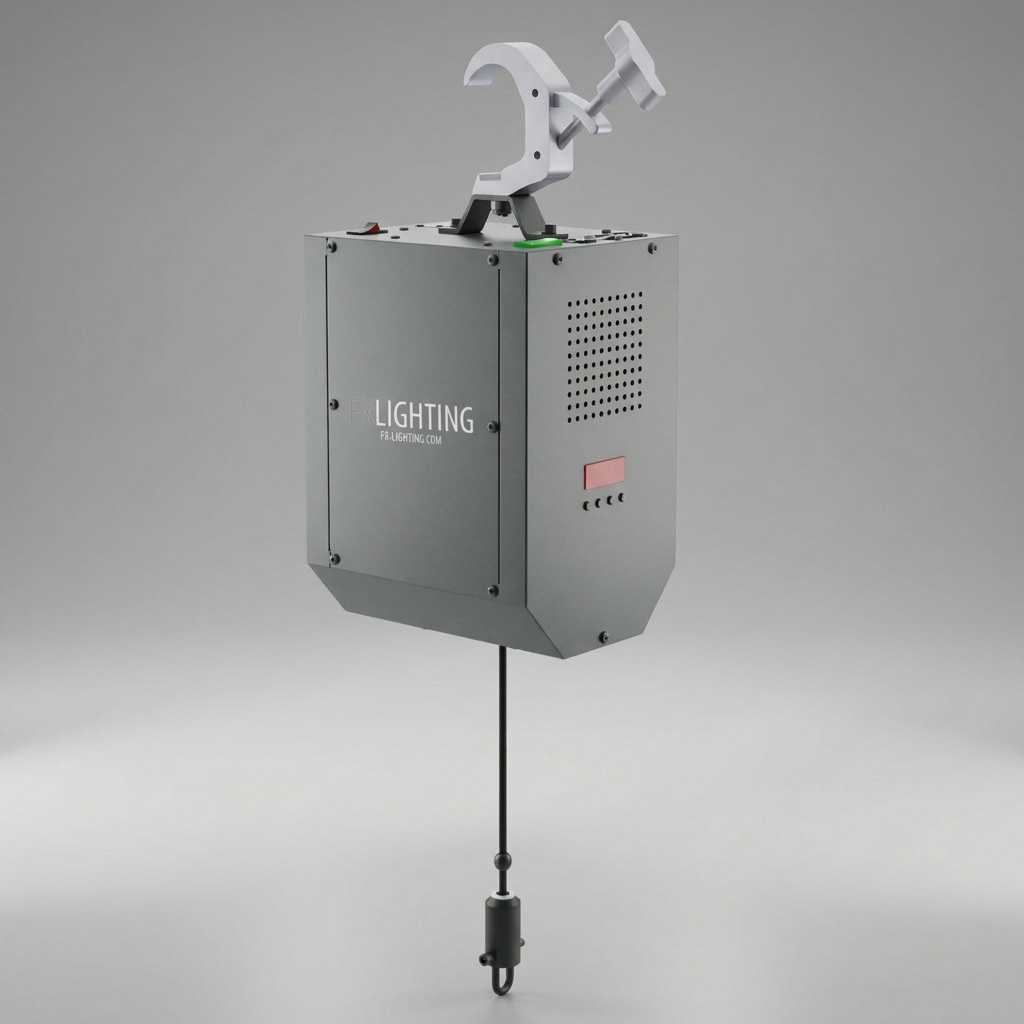

Kinetic Fly M9 — Kinetic Winch That Moves Like You Think
You’ve mapped the cues. You know the tempo. Now give the ceiling a role in the show.
The Kinetic Fly M9 is built for lighting designers and stage engineers who refuse to treat the air above the audience as dead space. This is precision rigging with a creative engine inside.
What It Does Differently
Most winches move things. The Kinetic Fly M9 moves things and lights them — with 126 built-in effects, 30 independently addressable RGBW LED elements, and three DMX channel modes that scale from a simple lift to a full pixel-mapped aerial display.
Set it to N-Mode and you’ve got 125 channels of live, programmable light suspended in mid-air. Flowing cascades, color chases, strobes, rainbow wipes — all without a media server. Just your console and a cable.
Numbers That Matter
| Spec | Value |
|---|---|
| Max Load | 5 kg |
| Travel Height | 9 m |
| Top Speed | 60 cm/s |
| Sync Accuracy | < 6 mm |
| DMX Protocol | DMX-512 / RDM |
| Channel Modes | 9 ch / 12 ch / 125 ch |
| Built-in Effects | 126 |
| LED Elements | Up to 30 × RGBW |
| Power Input | AC 90–240 V |
| Units per DMX Chain | Up to 15 |
| Weight | 8.6 kg |
| Protection | IP20 |
Three Modes, One Device
H-Mode — 9ch › Motion + RGBW color. 16-bit position fine-tuning. Clean and fast to patch.
C-Mode — 12ch › 24-bit positioning, built-in effects engine, strobe and trailing control on dedicated channels.
N-Mode — 125ch › Full pixel control. Each of 30 LED elements gets its own RGBW signal. This is where the real magic happens.
Built for Multi-Unit Rigs
Chain up to 15 units on a single DMX run. Link them via RJ45 for Teamwork mode — if one winch faults, the entire group stops instantly. No cable strain, no dropped fixtures, no drama mid-show.
Sub-6mm sync accuracy means your geometric patterns hold — whether you’re flying a flat grid or programming a wave across 12 units.
Console-Ready
Patches straight into MA, Pearl 2010, Tiger Touch or any ArtNet-DMX setup on Windows PC. No new gear, no workflow changes — just plug, address, and create.
The Kinetic Fly M9 doesn’t just fill space. It performs in it. Contact our team to spec the right configuration for your next production.
