Description

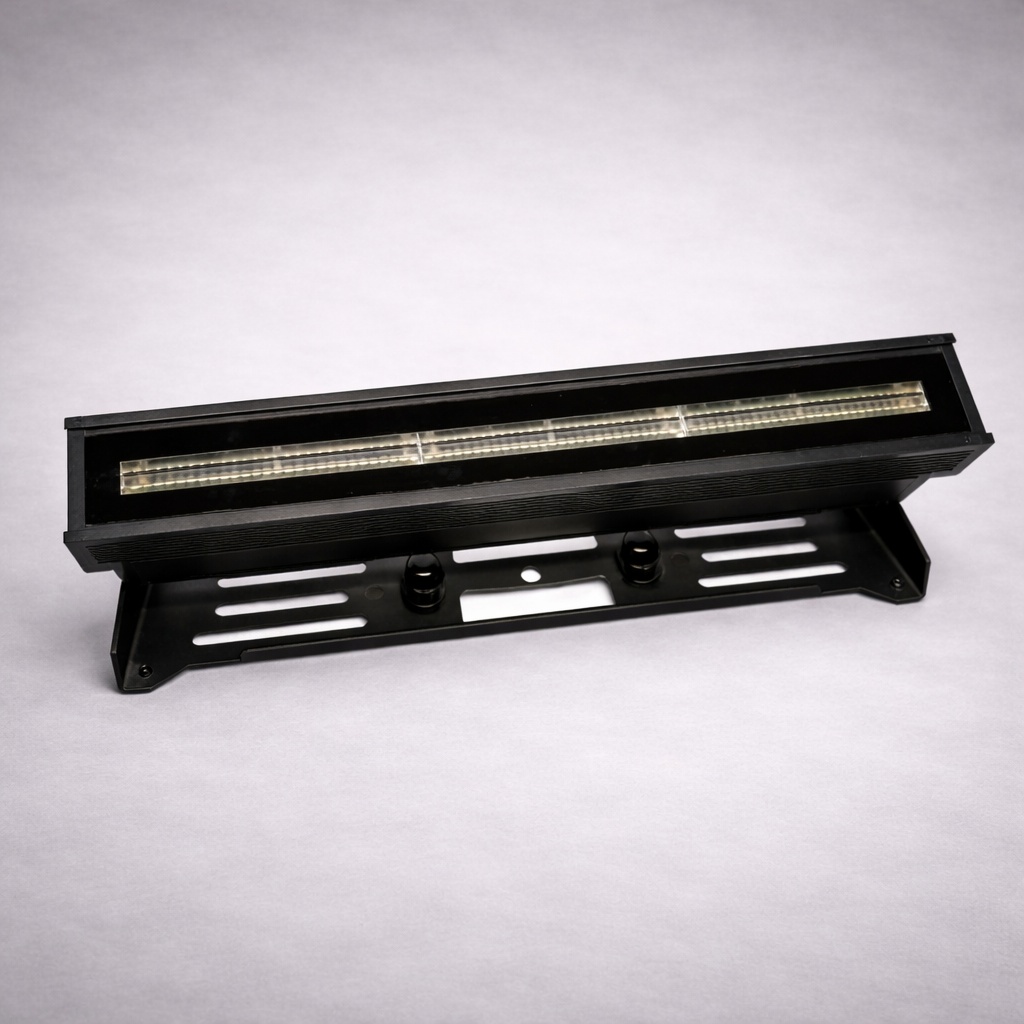

Mobi LED Washer — Professional Battery-Powered LED Wash Light
Untether Your Lighting Rig
The FX-Lighting Mobi LED Washer is a professional-grade, battery-powered LED wash light engineered for touring productions, event designers, and rental houses who demand flexibility without compromising on performance. With a built-in rechargeable lithium-ion battery, IP65 weatherproofing, and a full suite of control options, the Mobi LED Washer goes wherever the show goes — no power outlet required.
Key Features at a Glance
- 100W LED engine with 27 red, 27 green, and 27 blue LEDs (0.5W red / 0.8W green / 0.8W blue)
- Battery runtime of up to 2–2.5 hours at full output, or 6–7 hours in auto mode
- IP65-rated aluminium alloy housing — ready for indoor and outdoor environments
- Five DMX channel modes: 2, 3, 5, 8, and 11 channels for precise control at any scale
- Wireless DMX with a reception range of 150–160 m
- 2.4G IR remote control with a range of up to 50 m
- Three operating modes: DMX, Auto, and Master/Slave
- Color temperature range: 2500K–10000K with a CRI of 43
- Compact and road-ready: 500 × 95 × 132 mm, 3.64 kg
Performance & Photometrics
The Mobi LED Washer delivers 2,156 lumens of total output from its RGB LED array, with a native 60×10° lens providing a focused washer beam. The light achieves an efficacy of 25.43 lm/W and covers impressive distances:
| Distance | Lux (min–max) |
|---|---|
| 2 m | 880 – 1,153 lx |
| 5 m | 141 – 185 lx |
| 8 m | 55 – 72 lx |
| 10 m | 35 – 46 lx |
LED PWM frequency is selectable between 600 Hz and 15,000 Hz, making it a reliable choice for broadcast and video production environments where flicker sensitivity is a concern.
Control Options
DMX & Wireless DMX
The Mobi LED Washer speaks standard DMX512 via 3-pin XLR connectors and supports five channel configurations:
- 2 CH — Color + White Macro
- 3 CH — HSV (Hue / Saturation / Value)
- 5 CH — Dimmer, Dimmer Speed, R, G, B
- 8 CH — Adds Strobe and Auto programs
- 11 CH — Full control including individual ID addressing for per-fixture control in large rigs
Wireless DMX is built in, supporting both transmitter and receiver roles, with a working range of up to 160 m.
2.4G Remote Control
The included 2.4G wireless remote pairs easily with the fixture. It supports up to 50 metres of control range and can manage multiple groups of fixtures simultaneously — each group accommodating up to 50 units. Pairing is retained after power loss, so there’s no need to re-pair on site.
Master/Slave
Chain multiple units together via DMX cable. Set one fixture to Auto mode as the Master and all others in Slave mode will mirror it automatically — perfect for symmetrical looks without a console.
Auto & Custom Programming
Choose from 15 built-in auto programs with adjustable speed, or use the on-board EDIT menu to create up to 11 custom programs, each with 32 scenes. Parameters include Red, Green, Blue, White, Fade, Flash, Strobe, and Time per scene. Custom programs can be uploaded wirelessly from a Master unit to all Slave fixtures in the chain.
Battery & Charging
The built-in lithium-ion battery charges in 4–5 hours via the included DC 18V / 5A power adapter. Charging is recommended at temperatures between 15°C and 35°C, and the fixture should always be stored fully charged to preserve battery capacity.
The RUNTIME setting on the fixture lets you tailor maximum runtime to your production needs. For extended runtimes, consider programming the fixture with lower-power colours such as Red, Green, Blue, or White, or reduce overall dimmer output.
Build Quality & Installation
Housed in a die-cast aluminium alloy body with a silica gel lens and a fine sand black finish, the Mobi LED Washer is rated IP65 (dust-tight and water-jet resistant) and IK07 (impact resistant). It is suitable for hanging, floor-standing, and side-mounted positions.
The fixture can be rigged overhead using the supplied fast lock clamp. Always use an appropriate safety cable when flying the unit — the installation point must be rated to support at least 10 times the fixture’s weight. Overhead rigging should be checked annually by a qualified professional.
The exterior surface can reach up to 70°C during normal operation. Install only in ventilated locations and keep the unit at least 0.5 m from any flammable materials.
Specifications Summary
| Parameter | Value |
|---|---|
| LED Source | 27×0.5W Red + 27×0.8W Green + 27×0.8W Blue |
| Total Power | 100W |
| Max Power Consumption | 100.4 W |
| Input Voltage | 100–240V AC, 50/60 Hz |
| Battery Runtime (full) | 2–2.5 h |
| Battery Runtime (auto) | 6–7 h |
| Charging Time | 4–5 h |
| Color Temperature | 2500K–10000K |
| CRI | 43 |
| Total Lumen Output | 2,156 lm |
| Beam Angle | 60×10° |
| DMX Channels | 2 / 3 / 5 / 8 / 11 |
| Wireless Range | 150–160 m |
| Remote Control | 2.4G, up to 50 m |
| IP Rating | IP65 |
| IK Rating | IK07 |
| Dimensions | 500 × 95 × 132 mm |
| Weight | 3.64 kg |
| Housing Material | Aluminium alloy |
| Finish | Fine sand black |
In the Box
- 1× FX-Lighting Mobi LED Washer
- 1× Power cable
- 1× Power adapter (DC 18V 5A)
- 1× Fast lock clamp
- 1× User manual
Why Choose the FX-Lighting Mobi LED Washer?
Whether you’re lighting a corporate gala in a venue with no power drops, a fashion runway, an outdoor festival stage, or a broadcast set, the FX-Lighting Mobi LED Washer delivers the reliability and control you need in a self-contained, weather-resistant package. Its combination of wireless DMX, 2.4G remote, and advanced on-board programming means you can achieve professional results with minimal infrastructure — and maximum creative freedom.
